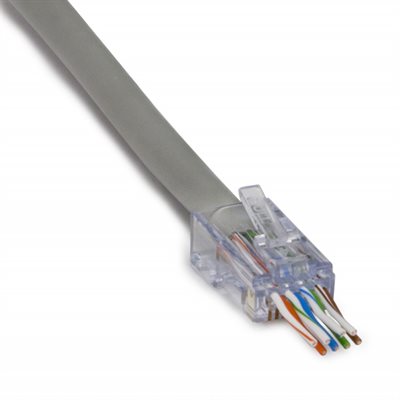

Platinum Tools ezEX48 Connectors (50 qty)
Press and move to zoom.
Mouse over image to zoom.

Platinum Tools ezEX48 Connectors (50 qty)

100029C

Features
  • Hi-Lo stagger isolates each conductor for higher performance
  • Simple one piece/pass through design, no bars or liners
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6A & Lg Cat6
  • Made in the USA
  • The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C)
Specs
  • Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
  • Max outer diameter: .290” (7.36mm)
  • 50 micron gold plated contacts
  • Solid or Stranded 23-22 AWG
What’s in the box
  • Platinum Tools ezEX48 Connectors (50 qty)
